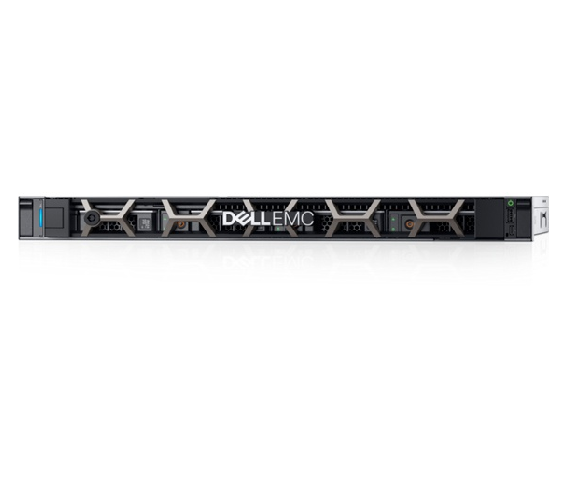

Dell EMC PowerVault NX3240

Dell EMC PowerVault NX3240

  • BM00351
  • Dell EMC

Cấu hình sản phẩm (Tùy chọn)

Base

  • Dell EMC NX3240, Dual Intel Xeon Silver 4208 2.1G, 32GB Mem, Optimal Config

RAID Configuration

  • C13, RAID 6 for 4 or more HDDs or SSDs (Matching Type/Speed/Capacity)

Hard Drives (Front Bay)

  • 600GB 15K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive,3.5in HYB CARR
  • 1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive, 3.5in HYB CARR
  • 1.8TB 10K RPM SAS 12Gbps 512e 2.5in Hot-plug Hard Drive, 3.5in HYB CARR
  • 2TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive
  • 2.4TB 10K RPM SAS 12Gbps 512e 2.5in Hot-plug Hard Drive, 3.5in HYB CARR
  • 4TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-plug Hard Drive
  •
  • 8TB 7.2K RPM NLSAS 12Gbps 512e 3.5in Hot-plug Hard Drive
  • 8TB 7.2K RPM NLSAS 12Gbps 4Kn 3.5in Hot-Plug Hard Drive
  • 8TB 7.2K RPM Self-Encrypting NLSAS 12Gbps 512e 3.5in Hot-plug Hard Drive, FIPS140
  • 12TB 7.2K RPM NLSAS 12Gbps 512e 3.5in Hot-plug Hard Drive

Hard Drives (Mid Bay)

  • 600GB 15K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive,3.5in HYB CARR
  • 1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive, 3.5in HYB CARR
  • 1.8TB 10K RPM SAS 12Gbps 512e 2.5in Hot-plug Hard Drive, 3.5in HYB CARR
  • 2TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive
  • 2.4TB 10K RPM SAS 12Gbps 512e 2.5in Hot-plug Hard Drive, 3.5in HYB CARR
  • 4TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-plug Hard Drive
  •
  • 8TB 7.2K RPM NLSAS 12Gbps 512e 3.5in Hot-plug Hard Drive
  • 8TB 7.2K RPM NLSAS 12Gbps 4Kn 3.5in Hot-Plug Hard Drive
  • 8TB 7.2K RPM Self-Encrypting NLSAS 12Gbps 512e 3.5in Hot-plug Hard Drive, FIPS140
  • 12TB 7.2K RPM NLSAS 12Gbps 512e 3.5in Hot-plug Hard Drive

Power Supply

  • Dual, Hot-plug, Redundant Power Supply (1+1), 750W
  • Dual, Hot-plug, Redundant Power Supply (1+1), 1100W

Trusted Platform Module


  • Trusted Platform Module 2.0
  • No Trusted Platform Module
