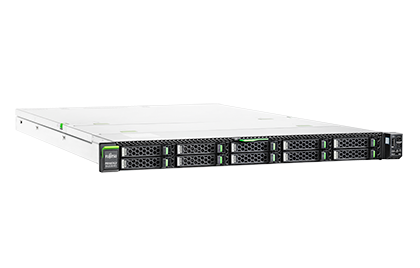

The FUJITSU Server PRIMERGY RX2530 M5 is a dual-socket rack server that provides high performance of the new Intel® Xeon® Processor Scalable Family CPUs, expandability of up to 3TB of DDR4 memory and the capability to use Intel® Optane™ DC Persistent Memory, and up to 10x 2.5-inch storage devices - all in a 1U space saving housing. Accordingly, the PRIMERGY RX2530 M5 is the optimal system for large virtualization and scale-out scenarios, databases and for high performance computing.

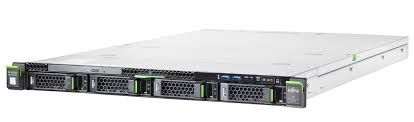

FUJITSU Server PRIMERGY RX2530 M5
- BM00360
- Fujitsu
| Chipset | Intel® C624 |
|---|---|
| Mainboard type | D3383-B D3383-B D3483-B |
| Product Type | Dual Socket Rack Server |
| Processor | Intel® Xeon® Processor Scalable Family 1 - 2 x Intel® Xeon® Processor Scalable Family |
| Memory | 8 GB - 7.5 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules) |
| Memory protection | Advanced ECC, Memory Scrubbing, SDDC, Rank sparing memory support, Memory Mirroring support |
| Drives (optional) | DVD supermulti, ultraslim, SATA I |
| PCI-Express 3.0 x8 | 1 x Low profile (2nd processor required for slot 4) |
| PCI-Express 3.0 x16 | 3 x Low profile (2nd processor required for slot 4); 1x16 if fh slot selected |
| Slot Notes | Slot 1 (internal): PCIe Gen3 x8 @CPU1 is dedicated for the modular RAID Controller. Slot 2: PCIe Gen3 x16 @CPU1 for low profile cards with up to 167mm length Slot 3: PCIe Gen3 x16 @CPU1 for low profile cards with up to 167mm length Slot 4 standard: PCIe Gen3 x16 @CPU2 for low profile cards with up to 167mm length Slot 4 option: PCIe Gen3 x16 @CPU2 for full height cards with up to 167mm length (in this case, slot 3 is not available) Slot availability and population depending on selected base unit. Please see relevant configurator for details. |
| Accessible drive bays | 1 x 5.25/0.4-inch for CD-RW/DVD |
| Optional accessible drives | Ultra slim 9.5mm optical drive (optional) n/a Not for 10 x 2.5-inch base unit. All possible options described in relevant system configurator. |
Bình luận
x930-28GSTX
Liên Hệ
- 24-port 10/100/1000T and 24-port 100/1000 SFP stackable switch with 4 SFP+ ports and dual hotswap PSU bays
- Long-distance stacking of up to 8 units supports distributed environments
- Autonomous Management Framework™ (AMF) and Wireless Manager provide unified network management for your entire wired and wireless infrastructure
FUJITSU PRIMERGY RX2540 M5
Liên Hệ
| Chipset | Intel® C624 |
|---|---|
| Mainboard type | D3384-B |
| Product Type | Dual Socket Rack Server |
| Processor | Intel® Xeon® Processor Scalable Family 1 - 2 |
| Memory | 8 GB - 7.5 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules) |
| Memory protection | Advanced ECC, Memory Scrubbing, SDDC, Rank sparing memory support, Memory Mirroring support |
| Drives (optional) | DVD supermulti, ultraslim, SATA I RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0 LTO6HH Ultrium, 160 MB/s, 2,500 GB, SAS 6Gb/s LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s |
| PCI-Express 3.0 x8 | 3 x Low profile (2nd processor required for slot 4) |
| PCI-Express 3.0 x16 | 3 x Low profile (2nd processor required for slot 5 and 6) |
| Slot Notes | One PCIe Gen3 x8 slot may be occupied with a Modular RAID controller if configured. Important: 3 PCIe slots are supported with the first processor. 6 PCIe slots are supported with two processors. PCIe riser card options can expand number of slots by two (max. 8 in total) and support max. 4 full height slots. Possible slot length described in relevant system configurator. |
| Accessible drive bays | 1 x 5.25/0.4-inch for CD-RW/DVD |
